Installation guidance

A factory-style finish starts with the correct fitment and careful installation. Professional installation is recommended, particularly where wiring, trim removal or exhaust hardware is involved.

Before you start

• Confirm your vehicle and switch-panel layout match the ordered kit.
• Check the supplied parts against the product listing and inspect for damage.
• Request the instructions for your exact platform from PB Valves. This overview does not replace the platform-specific wiring or mounting instructions.
• Follow the vehicle manufacturer’s procedures for electrical isolation, trim removal and safe lifting. Allow the exhaust to cool.

Installation overview

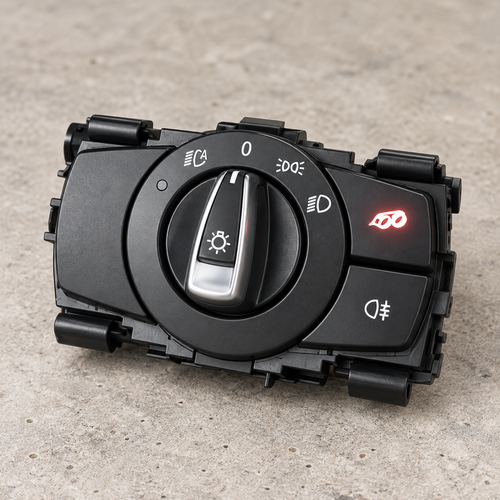

1. Trial-fit the replacement module and confirm all original switches remain accessible.
2. Fit the supplied valve hardware and controller according to the kit instructions.
3. Route and secure the wiring away from heat, sharp edges, moving parts and pinch points. Use only the connections and power supply specified for your kit.
4. Check that the valves move freely, then test the button and original vehicle functions before refitting trim.

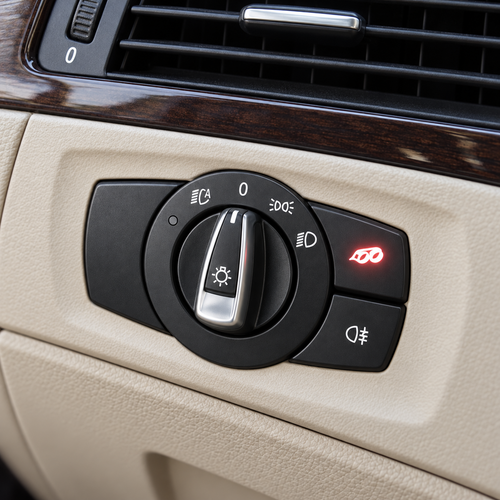

5. Confirm the illuminated state corresponds to open valves and the unlit state to closed valves. Check operation again after the vehicle is reassembled.

Pairing the button with the remote

1. Once the button is plugged in, press and hold the valve button for 3 seconds to enter pairing mode.
2. Press the OPEN button on the remote. You will hear 2 beeps.
3. Press the CLOSE button on the remote. You will hear 3 beeps.

The pairing process is now complete.

Need help during fitting?

Stop if a connector, mounting point or instruction does not match your vehicle. Send your order number, vehicle details and clear photos to support before continuing. Do not force connectors or guess wiring connections.
